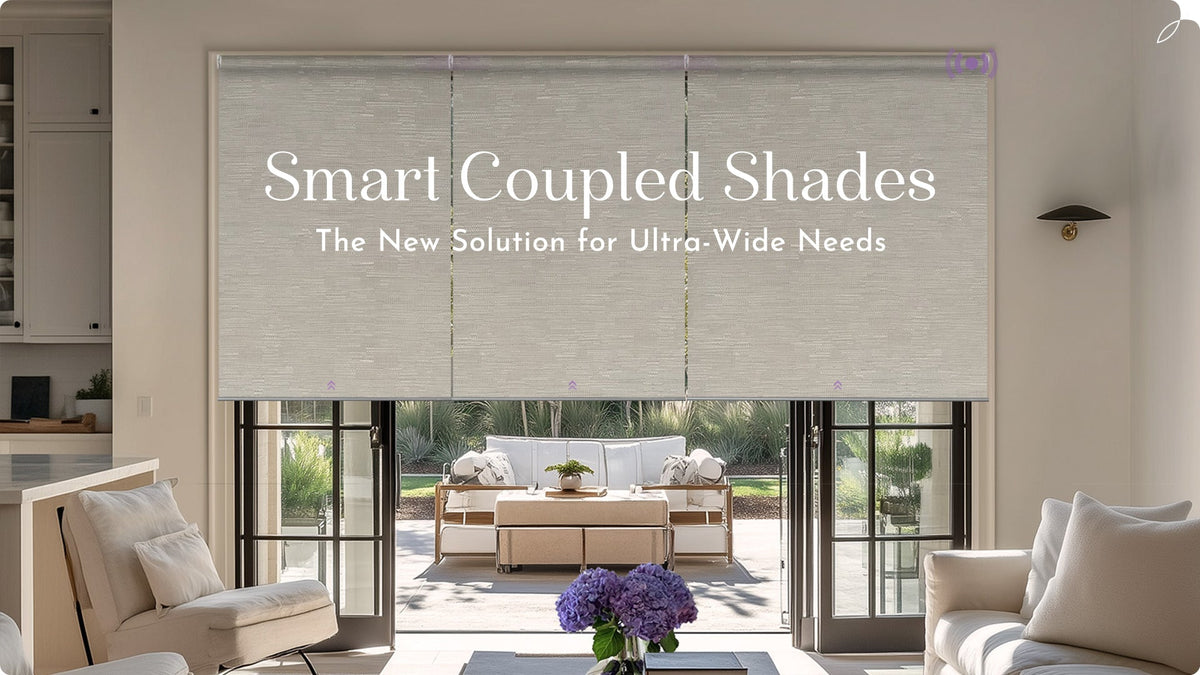

Smart coupled roller shades cover ultra-wide windows by connecting several fabric panels to a coordinated drive system. Instead of installing a separate motor for every shade, multiple panels can move together through a shared motor configuration. This approach provides synchronized control, reduces the number of motors required, and keeps the layout more consistent across large glass walls or window banks. It also narrows the spacing that separate shade systems may create, although small gaps remain between panels. Coupled shades work best when unified movement matters more than independent control of every window section.
What Are Smart Coupled Roller Shades?
A coupled roller shade system divides a wide opening into separate fabric panels connected through shared hardware. The panels raise and lower together, creating one coordinated treatment across a space that may be too wide for a single roller shade.
Graywind's current system can connect up to five fabric panels. Available configurations cover widths from 50 to 200 inches and heights from 30 to 120 inches. The exact panel count and size depend on the selected fabric, motor capacity, and installation conditions.
This makes coupled shades useful for:
- Floor-to-ceiling windows
- Side-by-side window banks
- Wide living room windows
- Conference rooms
- Large sliding glass doors
Fewer Motors and Simplified Control
Installing independent motorized shades across a wide opening normally requires one motor for each panel. A coupled system can operate several panels through a shared motor arrangement, depending on the chosen configuration.
Using fewer motors can reduce equipment cost and simplify charging, pairing, and everyday control. It does not guarantee a fixed dollar saving because the final price depends on the width, height, fabric, panel count, motor, and accessories.
All connected panels move together, which is convenient for creating one consistent light-control position. However, coupled shades are less suitable when each window section must open independently.
Reduced Gaps Across Wide Windows
Separate roller shades require space for individual brackets and operating hardware. Coupled hardware can reduce the spacing between adjacent panels, creating a more continuous appearance across a wide opening.
The system is not gap-free. Narrow spaces remain where the panels meet, so blackout fabric alone cannot guarantee complete room darkness. For bedrooms or media rooms, consider the position of each gap and how it aligns with the window frames.
Smart Operation
Graywind coupled shades can be controlled together using a compatible remote. App and voice control through Alexa or Google Home require the appropriate motor, accessories, and hub configuration.
The remote ordered with the shades is pre-programmed before shipment. Available app, scheduling, and voice features depend on the selected setup, so check the Graywind Smart Control Guide before choosing a motor.
Installation and Alignment Considerations
Wide treatments require accurate measurements and a secure mounting surface. The current product specifications list a minimum inside-mount depth of 1 7/8 inches. If the frame depth is less than 2 3/4 inches, the valance will project beyond the window frame.
Because the system uses separate fabric panels, minor differences in fabric tension or roll diameter may make the bottom rails appear slightly uneven at some positions. This does not necessarily prevent operation, but homeowners seeking exact visual alignment should discuss acceptable tolerances before ordering.
Before purchasing:
- Measure the full width and height in multiple places.
- Confirm that the mounting surface can support the complete system.
- Check where the panel gaps will fall.
- Confirm charging access and the selected control method.
- Use Graywind's measuring guide.
When Graywind Coupled Roller Shades Make Sense
Graywind coupled shades are designed for openings where a single roller shade is not practical and unified movement is preferred. They provide a cleaner alternative to installing several unrelated shades while using fewer motors than a fully independent layout.
They are not the only option for every wide opening. If independent panel movement or clear access through a sliding doorway matters more, compare Graywind's large-window treatments. You can also review the complete motorized shades before selecting the final configuration.
