Panel track blinds are window coverings made with wide panels that slide along a track system. They are a unique alternative to vertical blinds and provide an unobstructed view when open. Work especially well for sliding glass doors, patio doors, large windows, closet openings, and room dividers.
In this guide, we'll walk you through the key factors to consider when choosing panel track window blinds.

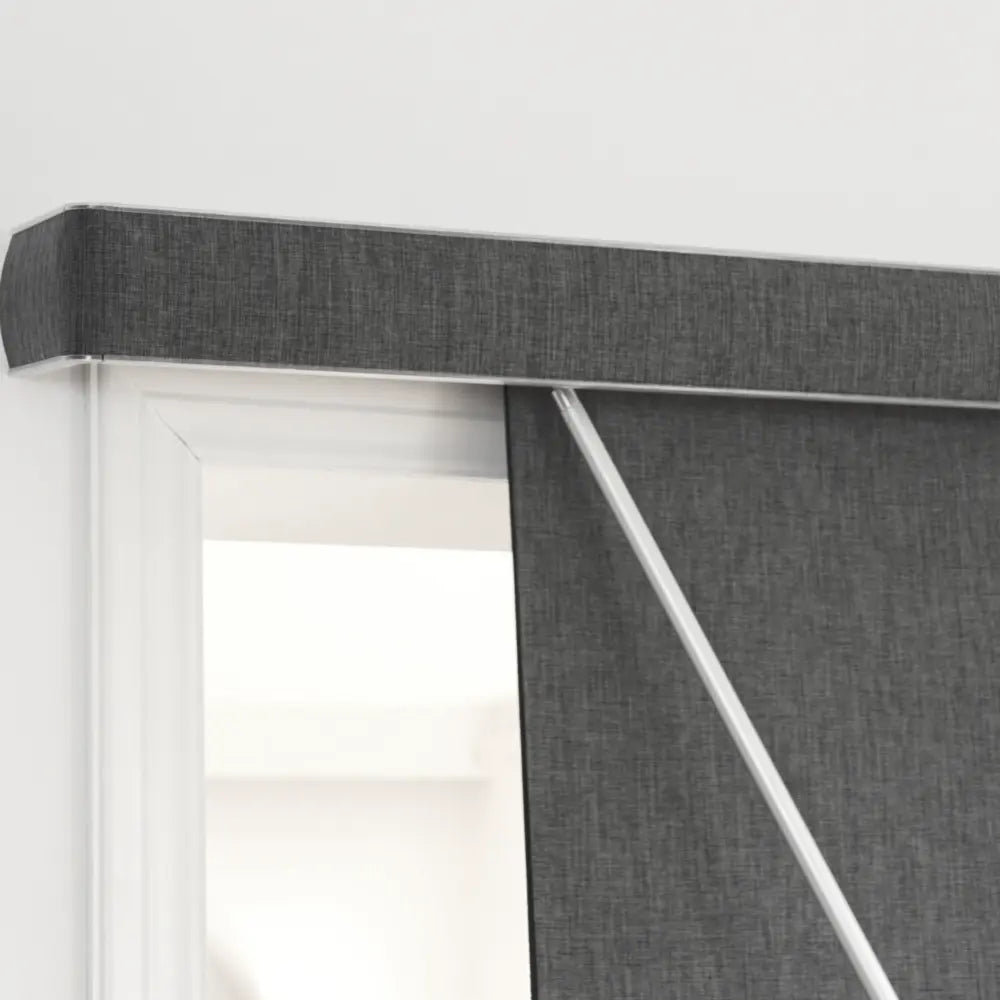

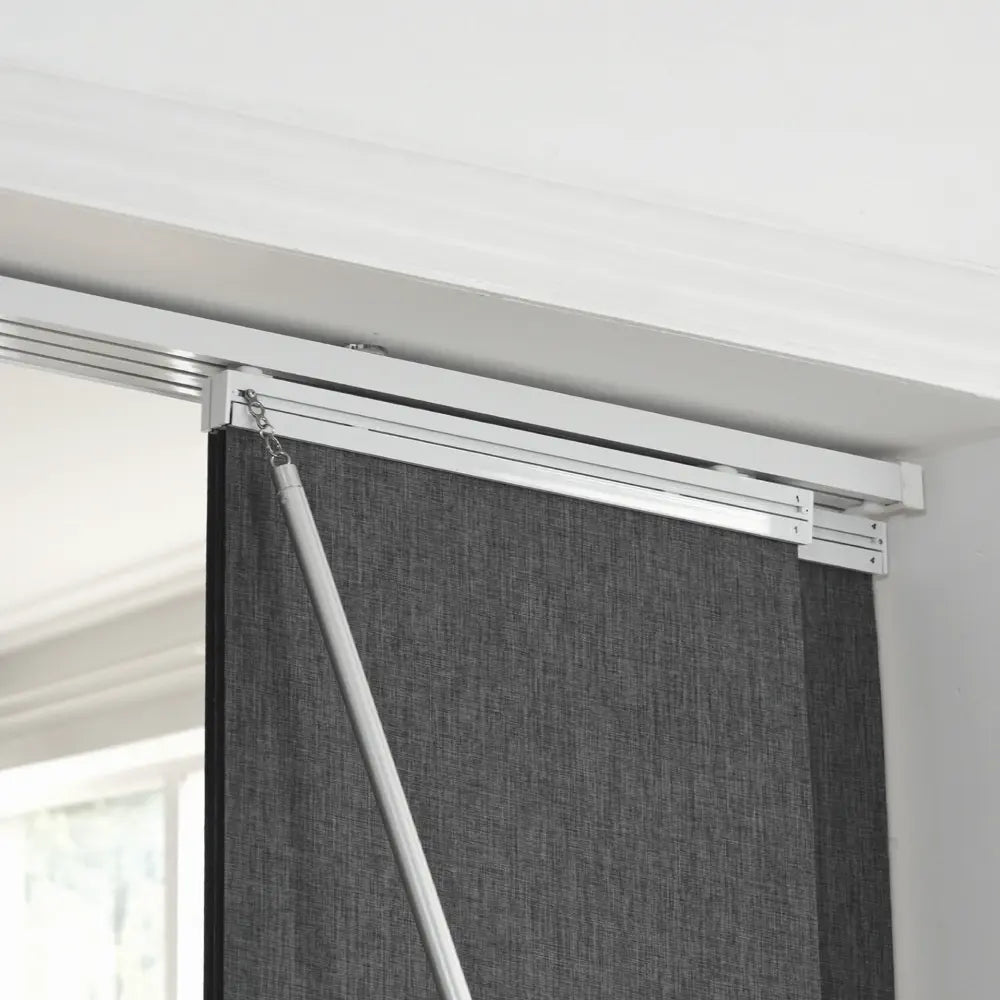

Choose Your Mount Type
Your mount type determines how you measure where the track is installed, how much coverage you get, and whether the panels can stack clear of the opening.
Decide Your Light & Privacy
Choose your fabric opacity based on how the room is used, how much direct sunlight it receives, and the level of daytime and nighttime privacy you need.

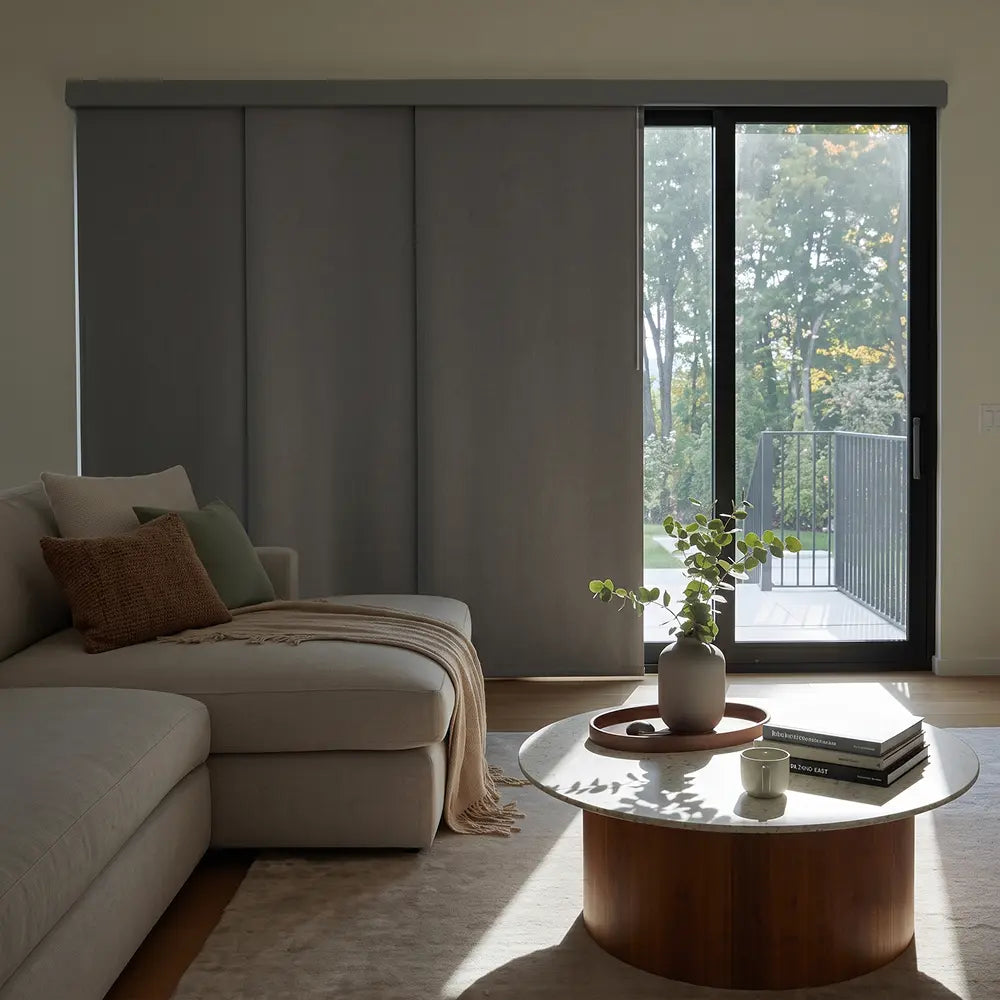

Blackout
Blackout panels provide stronger light control and deeper privacy. They help create a darker, more restful environment, making them especially suitable for bedrooms, nurseries, media rooms, and spaces where blocking light is important.

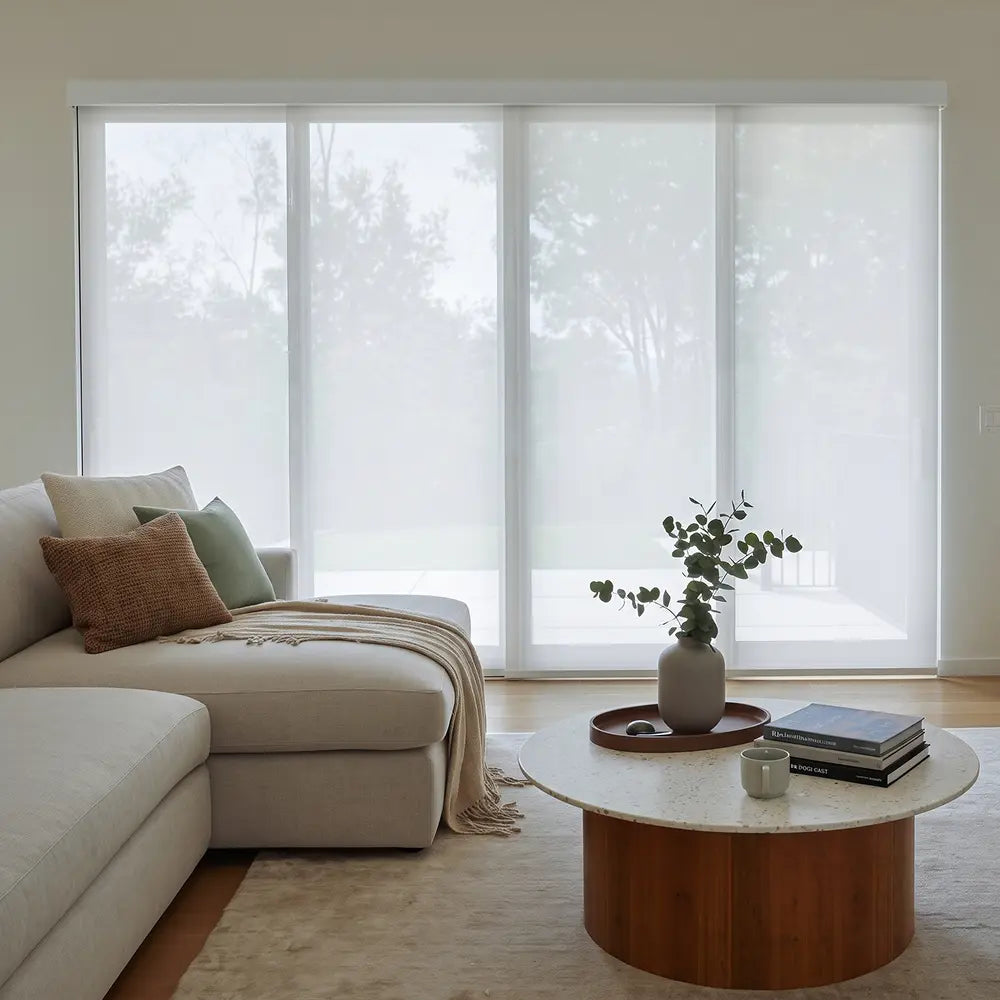

Light Filtering
Light-filtering panels soften daylight while keeping the room bright, open, and comfortable. They help reduce glare without completely blocking natural light, making them a good choice for living rooms, dining areas, kitchens, and casual spaces.
Panel Blind Layout Guide
Panel layout affects how your sliding panel blinds look, move, stack, and cover your window or door. Before placing your order, consider the stacking style, panel count, panel overlap, single panel width, and whether you want the panels to fully clear the opening when opened.
How Many Panels Do I Need?
How Many Panels Do I Need?
The number of panels affects both the appearance and functionality of your panel blind. More panels can create a fuller look and smoother coverage, while fewer panels create a cleaner, simpler look with fewer vertical lines.
When choosing your panel count, consider your window or door width, stacking style, and the overall look you prefer.
The chart is for a reference, it's base on the blinds type you choosed.
| Vane Stack Side | Width | Recommended Panel Qty |
| Left/Right Stack | 35'' - 41'' | 2 |
| 42'' - 54'' | 2/3 | |
| 55'' - 67'' | 2/3/4 | |
| 68'' - 80'' | 4/5 | |
| 81'' - 88'' | 4/5/6 | |
| 89'' - 93'' | 4/5/6 | |
| 94'' - 109'' | 5/6 | |
| 110'' - 153'' | 6 | |
| Split | 55'' - 80'' | 4 |
| 81'' - 106'' | 4/6 | |
| 107'' - 118'' | 4/6/8 | |
| 119'' - 153'' | 6/8/10 |
| Vane Stack Side | Width | Recommended Panel Qty |
| Left/Right Stack | 27'' - 37'' | 2 |
| 38'' - 48'' | 2/3 | |
| 49'' - 60'' | 3/4 | |
| 61'' - 71'' | 3/4/5 | |
| 72'' - 82'' | 4/5/6 | |
| 83'' - 90'' | 4/5/6 | |
| 91'' - 112'' | 5/6 | |
| 113'' - 153'' | 6 | |
| Split | 49'' - 71'' | 4 |
| 72'' - 93'' | 4/6 | |
| 94'' - 116'' | 4/6/8 | |
| 117'' - 153'' | 6/8/10 |
How to Choose the Right Stacking Style
How to Choose the Right Stacking Style
Stacking style determines where the panels gather when opened. Choose a left or right stack to keep one side clear, a split stack for a balanced opening, or a free-flow system that allows the panels to move from either side and be positioned to the left, right, or center.
When choosing a stacking style, consider your door opening direction, furniture placement, and the view you want to keep open.
How to Select the Right Panel Overlap
How to Select the Right Panel Overlap
Panel overlap refers to the area where one panel slightly covers the next. A proper overlap helps reduce light leakage, minimize shadow lines, improve the overall appearance, and keep the panels properly aligned as they slide along the track.
For better light-blocking performance, our blackout panel track blinds are available with an extended overlap option, allowing you to choose the level of coverage that best suits your needs.
How Wide Is Each Panel?
How Wide Is Each Panel?
Panel width is calculated based on the finished blind width, panel count, and panel overlap. It helps you understand how wide each individual panel will be.
Panel width = [Finished blind width + Panel overlap × (Panel count - 1)] ÷ Panel count
How Wide Should My Panel Blind Be to Clear the Window When Open?
How Wide Should My Panel Blind Be to Clear the Window When Open?
If you want the panels to fully clear the door when opened, outside mount is usually the better choice. The track may need to extend beyond the opening so the panels have enough space to stack to one side or both sides.
Clear Opening Size Calculator
Calculate the order width needed for the panels to stack completely outside the door or window opening.

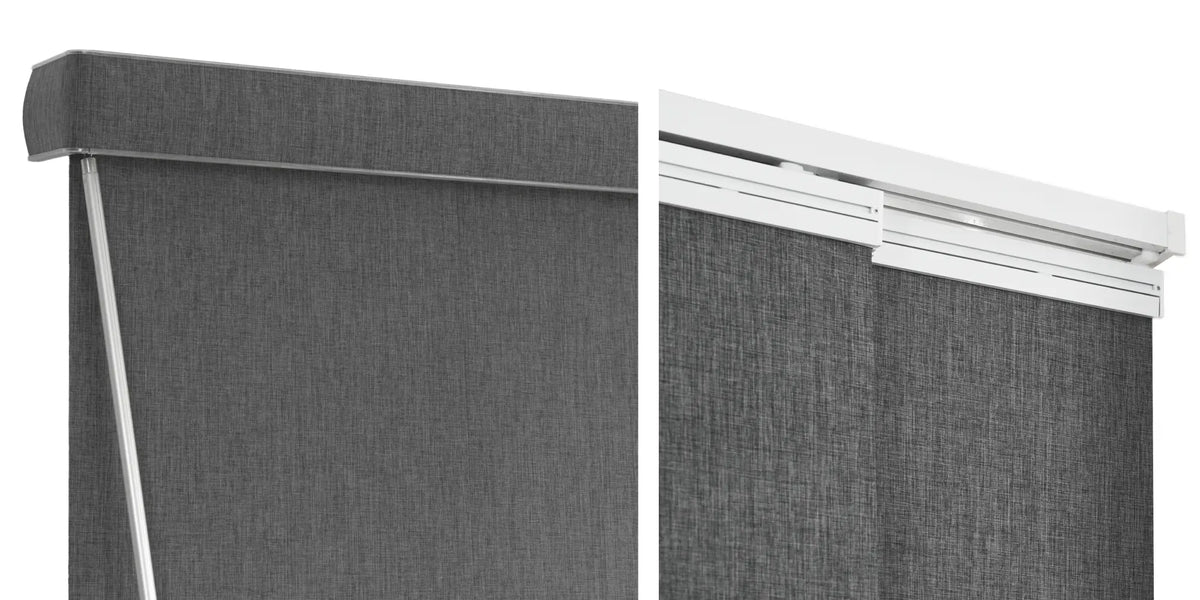

Add a Valance for a Finished Look
A valance helps cover the track system and gives your sliding panels a more finished, polished look. It can also help reduce light gaps at the top of the window for better overall coverage.

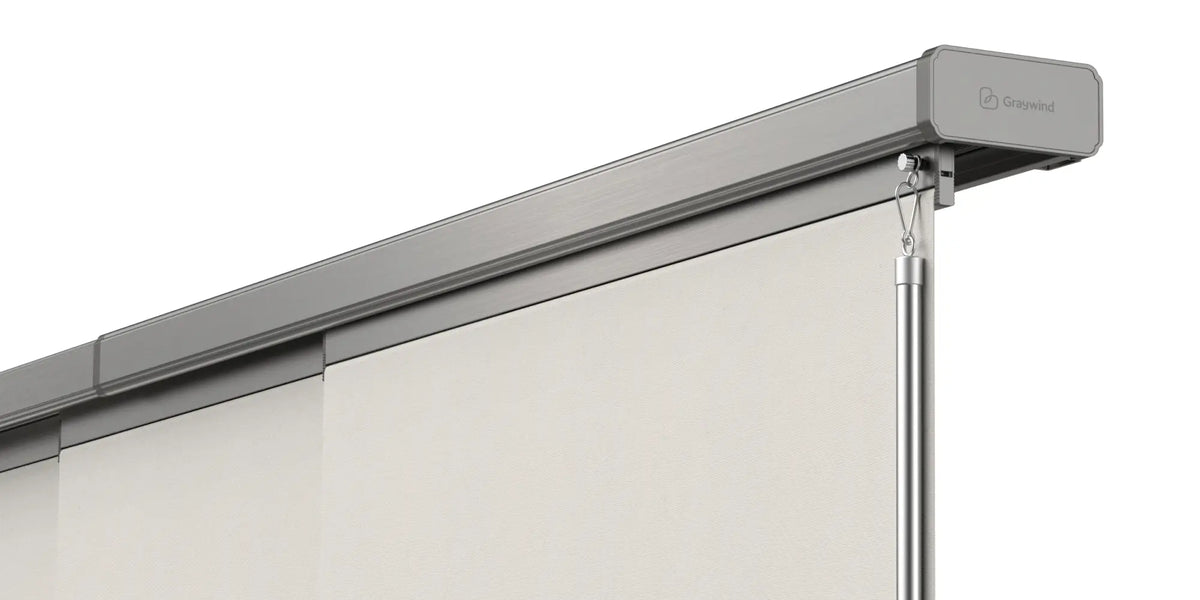

If you prefer a cleaner, more modern appearance, our upgraded track is a great choice. Its streamlined design looks refined without the need for a valance, making it ideal for contemporary interiors.
Manual or Motorized ?

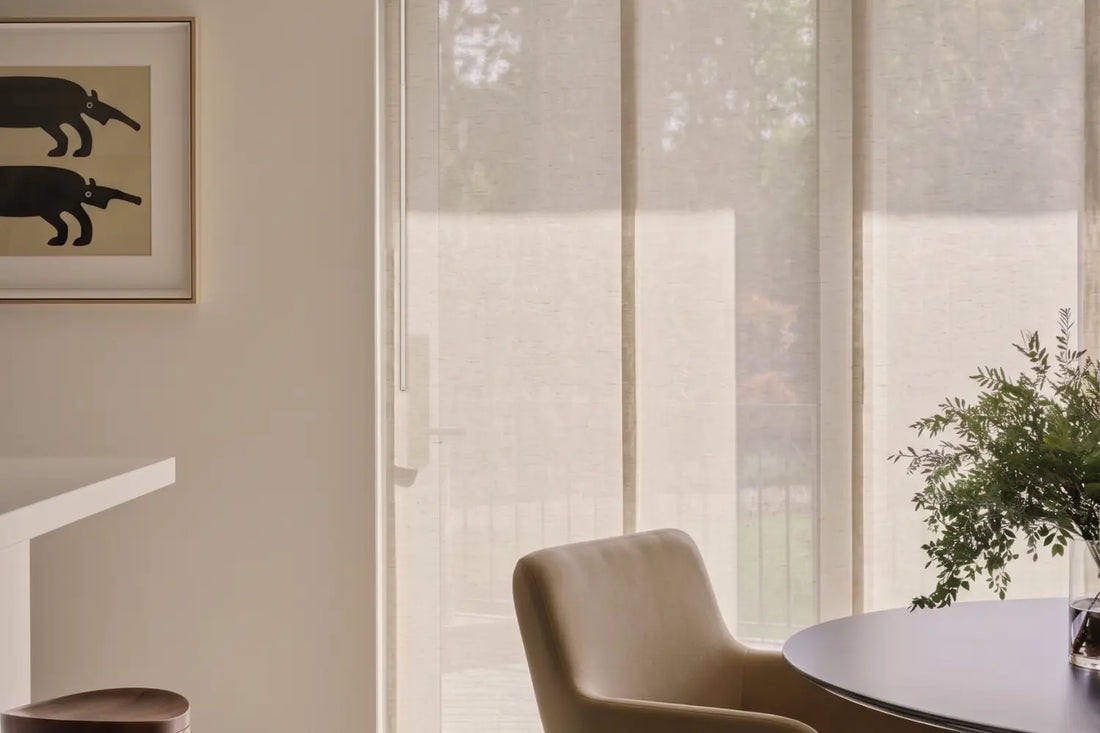

Manual Wand Control
Simple, Direct, and Always Ready
Slide the panels open or closed with the wand whenever you are nearby. With no charging, app, or setup required, it is a simple and dependable choice for easy-to-reach openings and direct everyday adjustment.

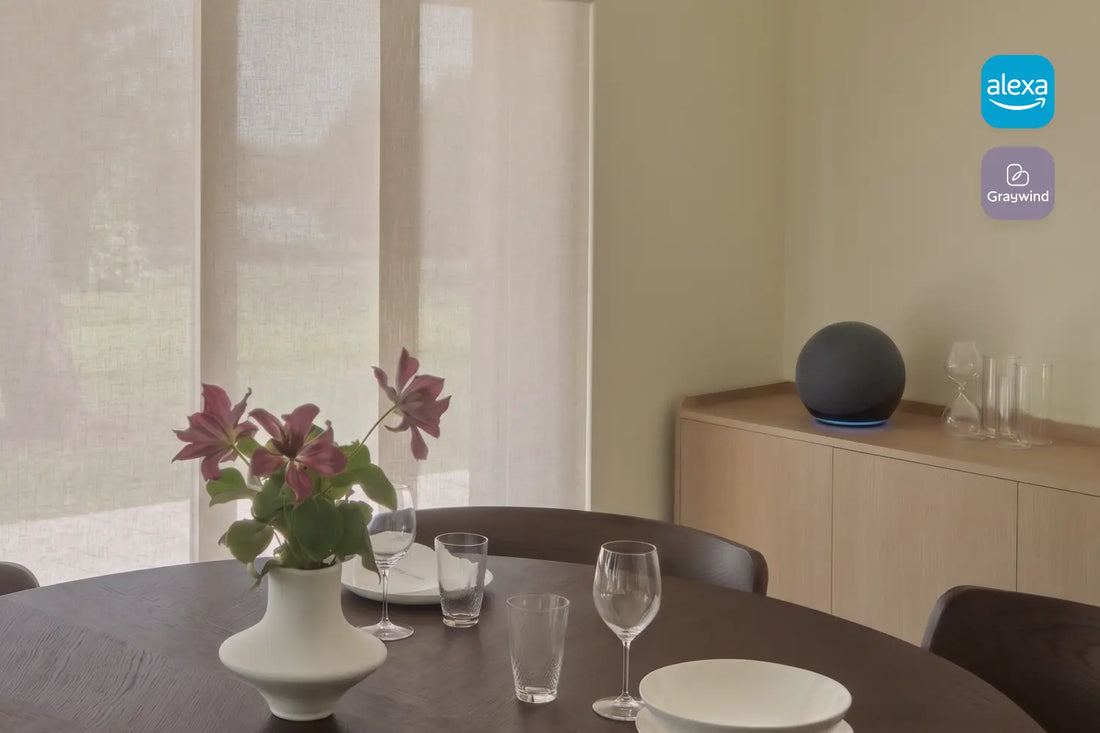

Motorized Control
Effortless and Smart Control
Open or close wide panels from your seat with a remote, app, or compatible voice assistant. It reduces the effort of moving large panels and is ideal for frequently used doors, wide openings, and everyday routines.

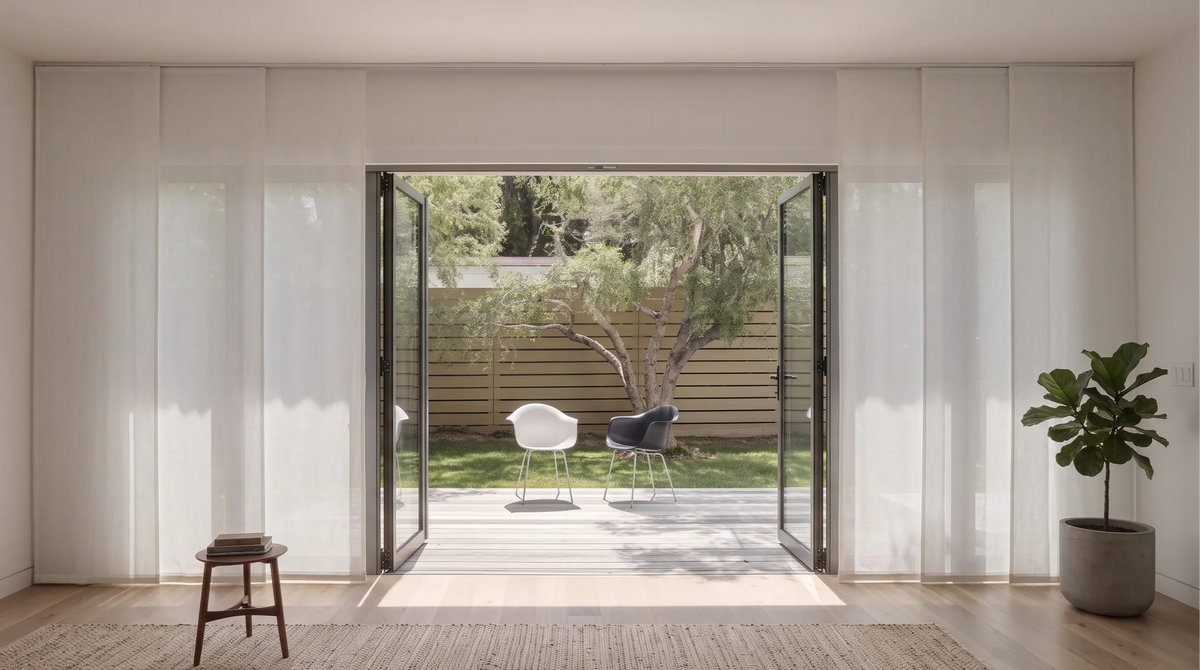

Ready to Transform Wide Openings?
Bring a clean, modern look to your large windows, sliding glass doors, patio doors, and open spaces with custom sliding panel track blinds.
